OSL JSON Format¶

This page describes the OSL-style JSON files loaded, edited, and written by the Video Annotation Tool.

An OSL JSON file is a single JSON object with dataset metadata, a label schema, and a data array of samples. Each sample points to one or more media inputs and can carry task-specific annotations.

Minimal Valid File¶

This is the smallest practical shape for a dataset with one video sample:

{
  "version": "2.0",
  "date": "2026-05-19",
  "dataset_name": "minimal-demo",
  "description": "",
  "modalities": ["video"],
  "metadata": {},
  "labels": {},
  "data": [
    {
      "id": "clip_0001",
      "inputs": [
        {
          "type": "video",
          "path": "clips/clip_0001.mp4"
        }
      ]
    }
  ]
}

Relative paths

Relative inputs[].path values are resolved from the folder that contains the JSON file. If you move the JSON without moving its media folders, playback can fail.

Common Mistakes¶

Mistake	Result	Fix
Root JSON is an array	The app rejects the file.	Use one root object with a `data` array.
`data` is missing or not a list	The app rejects the file.	Set `data` to `[]` or a list of sample objects.
Using top-level `questions` for Q/A	Legacy question banks are dropped on save.	Store Q/A in each sample's grouped `answers[]`.
Dense captions use `start_ms`/`end_ms` only	The current dense editor expects point timestamps.	Use `dense_captions[].position_ms` and, when UTC is known, `timestamp_utc`.
Annotation head names do not match root `labels`	Controls may not show the expected labels.	Keep `data[].labels` keys and `events[].head` values aligned with root `labels`.
Relative media paths no longer point to files	Samples load but playback cannot find media.	Keep media beside the JSON or resave after correcting paths.

Top-Level Object¶

The smallest useful file is a JSON object with data as a list. When loading, the app fills missing standard fields with defaults. When saving, it writes the standard project fields back out.

Field	Type	Notes
`version`	string	Current app default is `"2.0"`.
`date`	string	Usually an ISO date such as `"2026-05-19"`.
`dataset_name`	string	Human-readable project name.
`description`	string	Free-text dataset description. Empty string is allowed.
`modalities`	array	Input types present in the dataset, for example `["video"]`. The app recomputes this from sample inputs on save.
`metadata`	object	Dataset-level custom metadata.
`labels`	object	Label schema shared by classification and localization heads.
`data`	array	Sample list. This must be a list.

Unknown root keys are preserved, except retired legacy keys documented below.

Label Schema¶

The root labels object defines annotation heads. Each head name is a key, and each definition should include:

type: single_label or multi_label.
labels: list of allowed label strings.

{
  "labels": {
    "action": {
      "type": "single_label",
      "labels": ["pass", "shot", "foul"]
    },
    "attributes": {
      "type": "multi_label",
      "labels": ["left_foot", "header", "set_piece"]
    }
  }
}

Classification and localization annotations should reference these same head names. For example, data[].labels.action and data[].events[].head == "action" both point at the root labels.action schema.

Sample Objects¶

Each entry in data is one sample.

Field	Type	Notes
`id`	string	Stable sample ID. Missing or duplicate IDs are normalized on load/save. Duplicates receive suffixes such as `__2`.
`inputs`	array	Media or feature files for this sample. Multi-view samples use multiple input entries.
`metadata`	object	Optional sample-level metadata. Empty metadata is removed on save.
`labels`	object	Classification payload for this sample.
`events`	array	Timestamped localization events.
`captions`	array	Clip-level description captions.
`dense_captions`	array	Timestamped dense descriptions.
`answers`	array	Grouped question/answer annotations.

Unknown sample keys are preserved.

Input Objects¶

Each sample should include inputs, even if the sample has only one media file.

{
  "inputs": [
    {
      "type": "video",
      "path": "clips/clip_0001.mp4",
      "fps": 25.0,
      "UTC_time_start": "2022-12-03 13:27:59.461000"
    }
  ]
}

Supported input types:

Type	Typical path	Notes
`video`	`clips/clip_0001.mp4`	Default when type is missing and the extension is not special.
`frames_npy`	`frames/clip_0001.npy`	Uses `fps` for playback timing. The legacy alias `frame_npy` is normalized to `frames_npy`.
`tracking_parquet`	`tracking/clip_0001.parquet`	Uses parquet timestamps when available. Optional `fps` is a fallback.
`player_joints_h5`	`tracking/live_joints.h5`	Uses absolute UTC values from `timestamp_utc` for playback timing and renders a 3D stickman preview. Optional `ball_path` overlays ball XYZ from a separate H5 file.
`player_centroids_h5`	`tracking/live_centroids.h5`	Uses absolute UTC values from `timestamp_utc` for playback timing and renders top-down player centroids. Optional `ball_path` overlays ball XYZ from a separate H5 file.

UTC_time_start is optional for every input type and denotes the absolute UTC instant at local playback position 00:00.000. It accepts ISO-compatible timestamps with a space or T separator, optional fractional seconds, Z, or an explicit timezone offset. Naive values are treated as UTC. A valid explicit value overrides backend-derived timing, including H5 timestamp_utc. An empty or malformed explicit value makes the input relative instead of falling back to backend timing. The original field is preserved in project JSON unless it is changed through synchronization or the viewer's Set/Correct/Remove UTC actions.

Point annotations in events[] and dense_captions[] may contain both timestamp_utc and position_ms. A valid timestamp_utc is the authoritative real-world instant; position_ms is a backward-compatible projection relative to the currently resolved sample timeline origin:

timestamp_utc = timeline_origin_utc + position_ms
position_ms = timestamp_utc - timeline_origin_utc

Canonical annotation UTC is serialized as YYYY-MM-DD HH:MM:SS.ffffff. Input may use ISO-compatible timestamps with T, Z, or timezone offsets; aware values are normalized to UTC and naive values are interpreted as UTC. Samples may freely mix absolute and legacy relative annotations.

New and edited annotations write both fields when a genuine UTC origin is available. Save/export promotes legacy relative annotations and recomputes compatibility positions where such an origin can be resolved. No synthetic UTC origin is generated for relative-only samples. A malformed timestamp_utc is preserved and falls back to position_ms; it is replaced with normalized UTC only when the annotation is explicitly edited. Conflicting dual fields resolve in favor of valid timestamp_utc. Absolute annotations are preserved even when their projected positions are negative or beyond the available media duration.

In Localization and Dense Description tables, a resolvable annotation is shown as YYYY-MM-DD HH:MM:SS.mmm UTC; otherwise it is shown as relative MM:SS.mmm. Editing a UTC Time cell accepts the same ISO-compatible forms, normalizes timestamp_utc, and derives position_ms. Table selection, timeline markers, navigation, and media seeking always use the projected position_ms.

Input paths, including optional ball_path overlays, can be relative or absolute when loading. On save, paths are rewritten relative to the saved JSON file location when possible.

Optional ball overlay for player H5 inputs:

{
  "type": "player_centroids_h5",
  "path": "tracking/live_centroids.h5",
  "ball_path": "tracking/live_ball.h5"
}

Player-joint H5 inputs use UTC timing from timestamp_utc, support the same media controls as video inputs, and render 3D stickmen:

{
  "type": "player_joints_h5",
  "path": "tracking/live_joints.h5",
  "ball_path": "tracking/live_ball.h5"
}

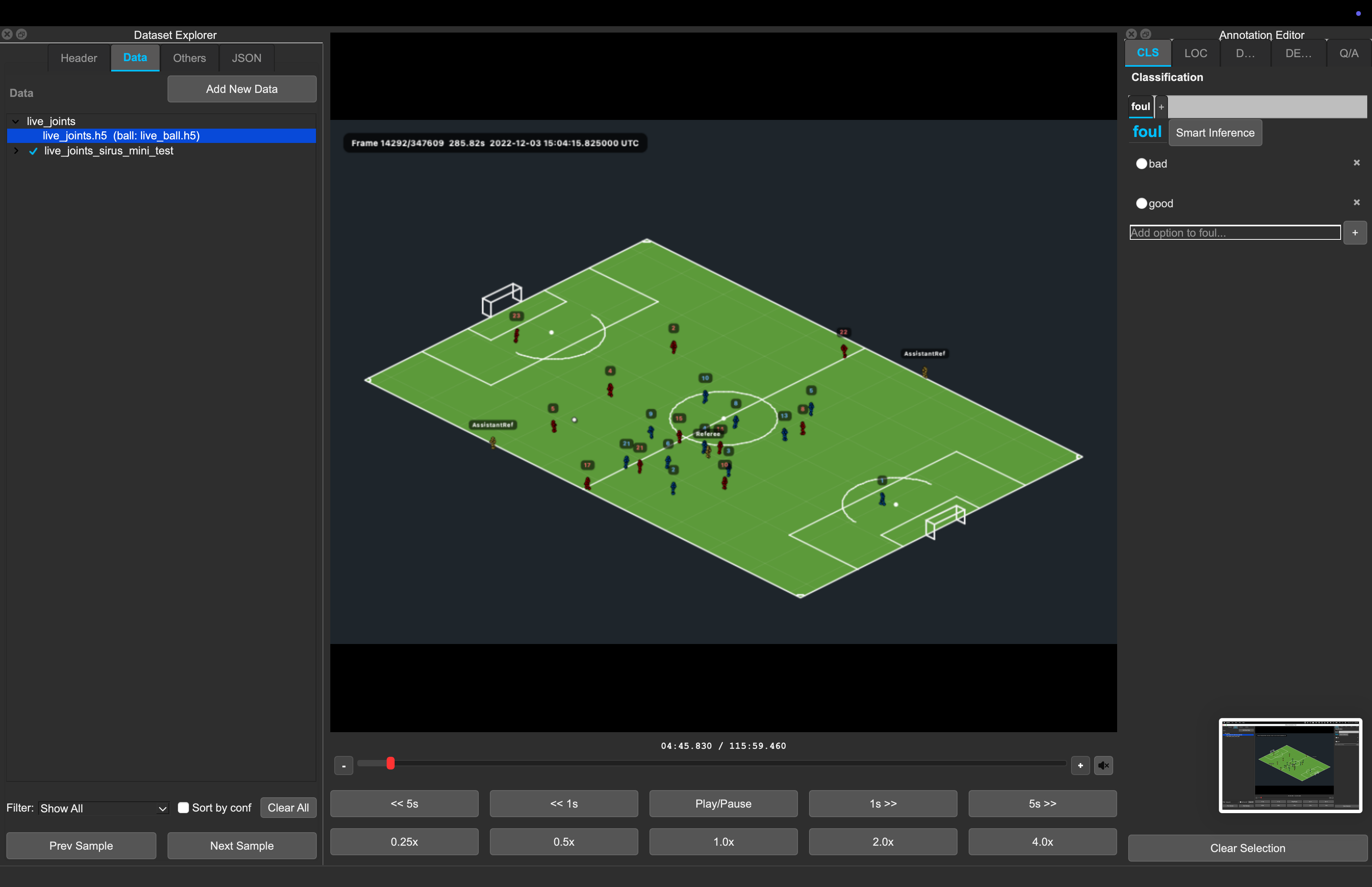

Player joints H5 preview

Player-centroid H5 inputs use UTC timing from timestamp_utc, support the same media controls, and render a top-down field view:

{
  "type": "player_centroids_h5",
  "path": "tracking/live_centroids.h5",
  "ball_path": "tracking/live_ball.h5"
}

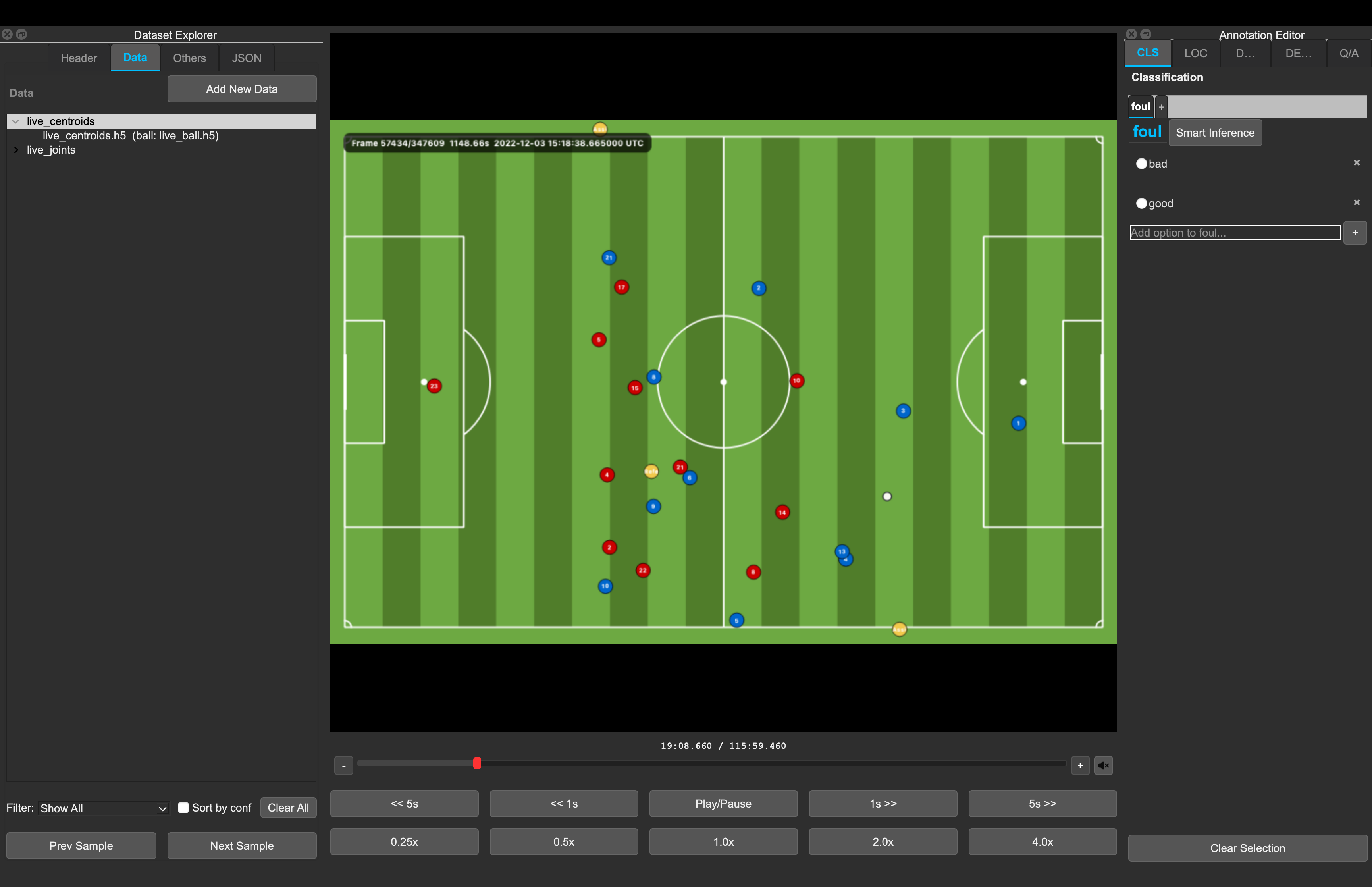

Player centroids H5 preview

Multi-view samples use more than one input:

{
  "id": "play_0001",
  "inputs": [
    {"type": "video", "path": "wide/play_0001.mp4", "fps": 25.0},
    {"type": "video", "path": "close/play_0001.mp4", "fps": 25.0}
  ]
}

Task Payloads¶

Classification¶

Sample-level labels uses the same head names defined at the root.

{
  "labels": {
    "action": {
      "label": "shot"
    },
    "attributes": {
      "labels": ["left_foot", "set_piece"]
    }
  }
}

Legacy project files may contain smart predictions whose head payload includes confidence_score as a float from 0.0 to 1.0:

{
  "labels": {
    "action": {
      "label": "shot",
      "confidence_score": 0.91
    }
  }
}

The loader remains compatible with this shape. New inference predictions are kept transient; accepting writes only the chosen label as a manual annotation.

Localization¶

Localization annotations live in events. Each event is a point annotation. The first row below uses the preferred dual-field representation; the second is a valid legacy relative row.

{
  "events": [
    {
      "head": "action",
      "label": "pass",
      "position_ms": 1240,
      "timestamp_utc": "2026-01-01 12:00:01.240000"
    },
    {
      "head": "action",
      "label": "shot",
      "position_ms": 4320,
      "confidence_score": 0.84
    }
  ]
}

head should match a root label head. Smart localization predictions use the same optional confidence_score convention as classification.

Description¶

Description annotations live in the ordered captions list. The Description editor exposes variant, lang, and text; additional caption fields are preserved. New rows default to English.

{
  "captions": [
    {
      "lang": "en",
      "text": "The player receives the pass and shoots.",
      "variant": "auto"
    },
    {
      "lang": "en",
      "text": "[PLAYER] receives the pass and shoots.",
      "variant": "clean"
    },
    {
      "lang": "en",
      "text": "[PLAYER] controls the pass before shooting.",
      "variant": "refined"
    }
  ]
}

Dense Description¶

Dense description annotations live in dense_captions. The current dense editor uses point timestamps. The example intentionally mixes one preferred absolute row with one supported legacy relative row.

{
  "dense_captions": [
    {
      "position_ms": 1200,
      "timestamp_utc": "2026-01-01 12:00:01.200000",
      "lang": "en",
      "text": "The midfielder receives the ball."
    },
    {
      "position_ms": 4300,
      "lang": "en",
      "text": "The forward takes a shot."
    }
  ]
}

Question/Answer¶

Q/A annotations live in grouped per-sample answers. Each group stores the question text and one or more non-empty answers.

{
  "answers": [
    {
      "question": "What happens after the pass?",
      "answers": ["The receiving player shoots."]
    }
  ]
}

Legacy top-level questions and per-answer question_id entries are not persisted. Convert old VQA files with tools/convert_legacy_vqa_to_grouped.py.

While a generated answer is awaiting review, an answers[] entry may also be an object:

{
  "text": "The receiving player shoots.",
  "confidence_score": 0.82,
  "inference_model_id": "sports-vqa-v2"
}

The loader preserves manual strings and legacy smart answer objects. New Q/A, caption, and dense-caption predictions remain transient until accepted. Legacy smart captions and dense captions use the same optional confidence_score and inference_model_id fields on their existing objects.

Complete Examples¶

Classification JSON¶

{
  "version": "2.0",
  "date": "2026-05-19",
  "dataset_name": "soccer-classification-demo",
  "description": "Clip-level action labels.",
  "modalities": ["video"],
  "metadata": {
    "sport": "soccer",
    "split": "train"
  },
  "labels": {
    "action": {
      "type": "single_label",
      "labels": ["pass", "shot", "foul"]
    },
    "attributes": {
      "type": "multi_label",
      "labels": ["left_foot", "header", "set_piece"]
    }
  },
  "data": [
    {
      "id": "clip_0001",
      "inputs": [
        {
          "type": "video",
          "path": "clips/clip_0001.mp4",
          "fps": 25.0
        }
      ],
      "labels": {
        "action": {
          "label": "shot"
        },
        "attributes": {
          "labels": ["left_foot"]
        }
      },
      "metadata": {
        "match_id": "match_01"
      }
    }
  ]
}

Localization and Dense Description JSON¶

{
  "version": "2.0",
  "date": "2026-05-19",
  "dataset_name": "soccer-timeline-demo",
  "description": "Timestamped events and dense captions.",
  "modalities": ["video"],
  "metadata": {},
  "labels": {
    "action": {
      "type": "single_label",
      "labels": ["pass", "shot", "save"]
    }
  },
  "data": [
    {
      "id": "attack_0001",
      "inputs": [
        {
          "type": "video",
          "path": "clips/attack_0001.mp4",
          "fps": 25.0,
          "UTC_time_start": "2026-01-01 12:00:00.000000"
        }
      ],
      "events": [
        {
          "head": "action",
          "label": "pass",
          "position_ms": 1100,
          "timestamp_utc": "2026-01-01 12:00:01.100000"
        },
        {
          "head": "action",
          "label": "shot",
          "position_ms": 3650,
          "timestamp_utc": "2026-01-01 12:00:03.650000"
        }
      ],
      "captions": [
        {
          "lang": "en",
          "text": "A quick attack ends with a shot on goal."
        }
      ],
      "dense_captions": [
        {
          "position_ms": 1100,
          "timestamp_utc": "2026-01-01 12:00:01.100000",
          "lang": "en",
          "text": "The midfielder plays a forward pass."
        },
        {
          "position_ms": 3650,
          "timestamp_utc": "2026-01-01 12:00:03.650000",
          "lang": "en",
          "text": "The striker shoots from inside the area."
        }
      ]
    }
  ]
}

Multi-Input Q/A JSON¶

{
  "version": "2.0",
  "date": "2026-05-19",
  "dataset_name": "multi-view-qa-demo",
  "description": "Two synchronized views with question/answer labels.",
  "modalities": ["video"],
  "metadata": {
    "sport": "basketball"
  },
  "labels": {},
  "data": [
    {
      "id": "possession_0001",
      "inputs": [
        {
          "type": "video",
          "path": "broadcast/possession_0001.mp4",
          "fps": 30.0
        },
        {
          "type": "video",
          "path": "baseline/possession_0001.mp4",
          "fps": 30.0
        }
      ],
      "answers": [
        {
          "question": "Which team ends the possession?",
          "answers": ["The home team."]
        },
        {
          "question": "How does the possession end?",
          "answers": ["A made three-point shot."]
        }
      ]
    }
  ]
}

Save-Time Behavior¶

On save/export, the app:

Ensures unique sample IDs.
Normalizes input types, including frame_npy to frames_npy.
Rewrites input paths relative to the output JSON location when possible.
Recomputes modalities from data[].inputs[].
Removes empty optional sample fields such as labels, events, captions, dense_captions, answers, and metadata.
Normalizes Q/A answers to grouped {"question": ..., "answers": [...]} entries with non-empty text.
Drops legacy top-level questions and question_id answer entries.
Drops retired sample smart keys such as smart_labels and smart_events.
Does not persist localization label_colors; label colors live in app settings.
Preserves unknown root and sample fields where possible.
